Mini-Inline Emitters

The mini-inline emitter is designed to be inserted into standard 1/4″ tubing to form a dripperline. Spacing can be at constant intervals or randomly inserted to irrigate a particular plant. Three flowrates are available  and they are color coded for easy identification. This dripperline can be used in a straight line or circled around a tree.

Features

  • Available in 0.5, 1.0 and 2.0 gph flowrates
  • Fits standard 1/4″ poly tubing
  • Color coded for easy flowrate identification
  • Use a goof plug to seal off end of dripperline
  • Different flowrates can be mixed into the dripperline
  • Turbulent flowpath to minimize clogging
  • Constructed of UV resistant engineering grade plastic material

Specifications

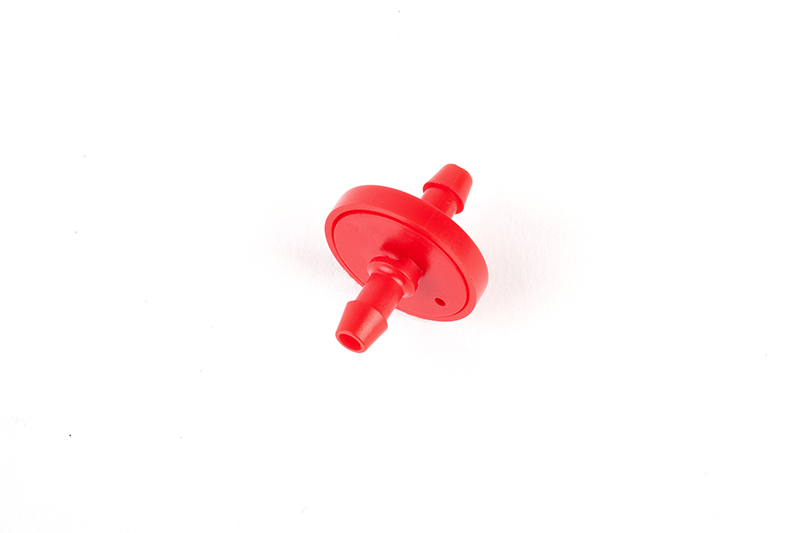

  • 0.5 gph color code – red

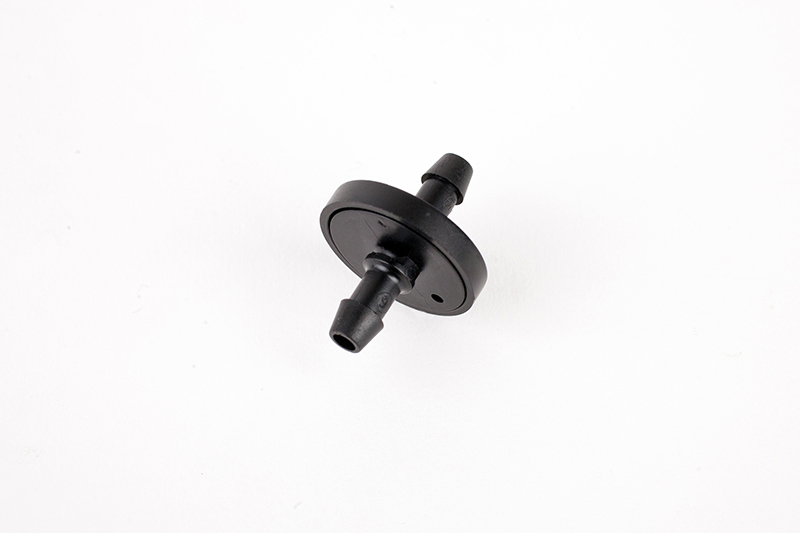

  • 1.0 gph color code – black
  • 2.0 gph color code – green
  • Max operating pressure: 30 psi
  • Use 0.170″ ID x 0.250″ OD poly tubing
  • Filter requirement: minimum of 150 mesh

Mini-Inline Emitters
DISCHARGE RATES

Part No. Max # Allowed* 15 psi 20 psi 30 psi
EMIL5 30 emitters 0.60 gph 0.70 gph 0.90 gph
EMIL10 15 emitters 0.90 gph 1.05 gph 1.35 gph
EMIL20 10 emitters 1.40 gph 1.60 gph 2.10 gph

*Based on average of 12″ spacing between emitters.

USE WITH

Can be used with standard 1/4″ poly tubing.
